Slots

A slot is hal0’s unit of served inference: one named place that runs one model. Behind every slot is a single podman container, and around every slot is a lifecycle the platform manages for you. Slots are what the dispatcher routes to, what the GPU arbiter coordinates, and — as of v1.0 — the sole owner of where a model runs and how much context it gets. That last point is a real v1.0 behavior change from earlier releases, and it’s worth understanding precisely: see The hardware/model write boundary below.

One slot, one container

Each slot is backed by a systemd template unit named hal0-slot@<name>.service whose ExecStart runs podman run. That launches exactly one container — hal0-slot-<name> — serving one model on a loopback port. The container runtime defaults to podman; the unit uses --replace so a restart never trips over a stale container name, and publishes its port on 127.0.0.1 only.

SlotManager owns this. It renders the unit, starts and stops it, tracks state, and registers the running container as an internal upstream so the dispatcher can forward to it. A slot’s TOML supplies its name, port, hardware grid, and a reference to a profile for the workload tune; the model itself (and the model’s own settings) come from the registry.

Note

The container runtime is podman. A docker fallback exists, but podman is the supported path — slot units are generated for it.

The hardware/model write boundary

v1.0 draws a hard line between two layers, and enforces it at every write path rather than just documenting it:

• The slot owns the physical/placement layer — device, gpu_index, n_gpu_layers, threads, binary (which container image family to run), and the image_pin escape hatch. This is the “hardware grid”: [device · NGL · THREADS · BINARY].
• The model owns the logical/behavioral layer — mtp, enable_thinking, vision, jinja, chat_template, and freeform tuning flags. These are set on the model’s registry entry (defaults), not on the slot.

Three keys in particular — mtp, enable_thinking, vision — are explicitly forbidden on a slot. SlotConfig doesn’t even declare them as fields; attempting to write one to a slot is rejected outright (slot.model_owned_key_denied) with a message pointing you at PUT /api/models/{id} instead. The symmetric guard runs the other way too: hardware flags like --n-gpu-layers/-ngl, --device/-dev, and --threads/-t are rejected if you try to set them as a model or profile freeform flag — those belong on the slot.

Caution

This partition is a hard invariant, but its enforcement has a real track record of needing to be retrofitted onto new write paths after the fact — the stacks-apply engine, in particular, bypassed it more than once before a single shared gate (guard_slot_write_payload) was made the one pipeline every writer (SlotManager.create, SlotManager.update_config, and stacks apply) routes through. If you’re adding a new way to write a slot config, route it through that shared gate rather than hand-rolling a merge.

A legacy slot TOML that still carries mtp/enable_thinking/vision from a pre-1.0 install still loads fine — a one-shot migrator folds the value onto the bound model’s defaults and drops the slot key. Only new writes carrying those keys are rejected going forward.

Context size is a ceiling, not an override

The same ownership split applies to context size. The model owns the resolved context window — its own defaults.context_size, else the GGUF-derived native window (dense-capped), else a safe 8192 floor. A slot’s [model].context_size value, if set, is honored only as a cap on that resolved window (effective = min(model_window, slot_value)) — because a slot owns hardware, and the installer uses this field to write a VRAM-budget clamp. It can never raise the effective window above what the model resolves to. Leaving it unset (the default for a new slot) means “follow the model.”

Pinning a slot to one GPU

On a multi-GPU host, a slot’s gpu_index (an integer, 0 and up) pins it to a single card instead of the default “all GPUs” behaviour. The env or device mapping it emits is backend-specific, and — as of v1.0 — is derived from the slot’s own device, never from a profile’s fields:

Device	What gpu_index does
gpu-rocm	Sets HIP_VISIBLE_DEVICES and ROCR_VISIBLE_DEVICES to the index.
gpu-vulkan	Sets GGML_VK_VISIBLE_DEVICES to the index.
gpu-cuda	Maps only that GPU in via CDI (--device nvidia.com/gpu=<n>) and sets CUDA_VISIBLE_DEVICES=0 inside the container, since the CDI mapping already exposes just the one card as ordinal 0.

Leaving gpu_index unset (the default) targets every GPU the backend can see, unchanged from single-GPU behaviour. Any explicit [server].env entry you set still wins over the derived visibility variables — they’re merged underneath, never over.

Note

This GPU device-node passthrough decision used to read a profile’s device_class/backend fields as authoritative, which meant a cpu-targeted slot on a CPU-only profile could still request real GPU device nodes. v1.0 fixes this: passthrough is decided from slot.device alone.

The lifecycle state machine

A slot moves through an explicit set of states. The SlotState values are also the wire representation streamed to the dashboard, so what you see is a real transition, not a systemd snapshot:

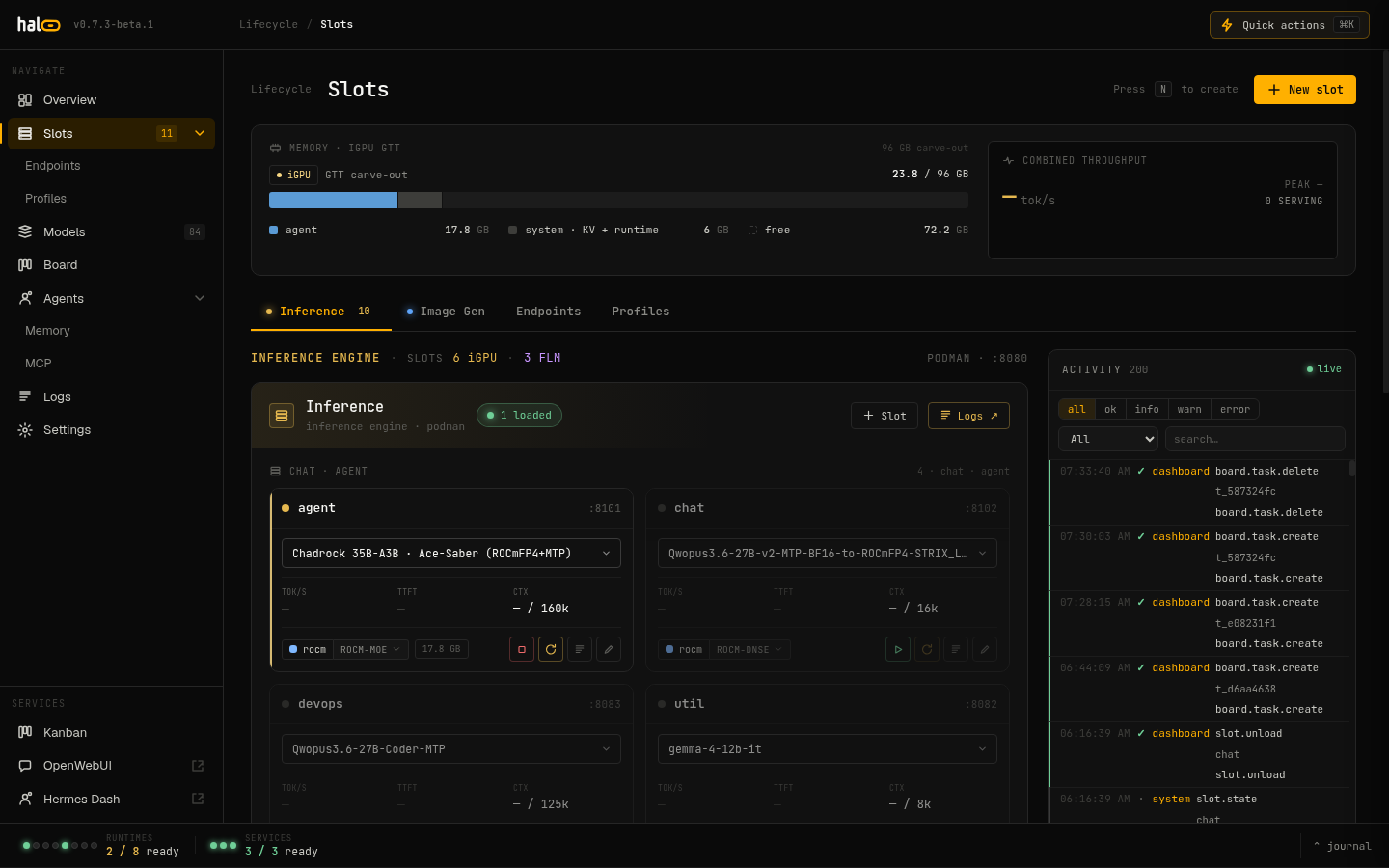

The slot lifecycle transitions visualized.

State	Meaning
offline	Not running; no active unit.
pulling	Model files are downloading or being verified.
starting	The unit has started; waiting for the container to come up.
warming	Container is up; the model is loading into the GPU/GTT pool.
ready	Health probe passed; ready to serve.
serving	A request is actively in flight.
idle	Up but not serving — either warm-but-quiet, or up with no loadable model.
unloading	Graceful shutdown in progress.
error	Failed; details in state.json and the journal.

Transitions are constrained — only legal edges are allowed — and persisted atomically so a dashboard reader never observes a half-written state. The dispatchable “ready set” is ready, serving, and idle: those are the states a request can be routed to. Any other state means the slot is mid-lifecycle, and the dispatcher returns a structured slot.loading 503 with a Retry-After hint rather than failing with a raw connection error.

Tip

idle is two situations the dashboard renders the same way: a slot that was ready but has had no traffic past its idle timeout (a candidate for unload), or a process that started but has no model it can actually serve. Both are distinct from ready so routing never picks a slot that can’t fulfil a request.

Serving and idling

When the dispatcher forwards a request to a slot, it wraps the call in the slot’s serving state: the first concurrent request moves the slot ready/idle → serving, and the last one to finish moves it back to ready. For a streamed response, the slot stays serving until the stream drains. A background idle monitor demotes a quiet ready slot to idle after its idle timeout (300 seconds by default), so the dashboard can distinguish “warm and working” from “warm but quiet.”

Single-flight dispatch

Two safety mechanisms keep concurrent traffic from colliding:

• Per-slot lock. Load, unload, and restart for a given slot serialize behind one lock, so two requests can never race to start or swap the same slot’s container.
• Coalesced prefetch. When the dispatcher needs to fetch a cold upstream’s model list, identical concurrent fetches share a single execution — a hundred simultaneous requests for the same uncached model trigger one upstream call, not a hundred. They all receive the same result (or the same error).

The effect is that a burst of requests for a model that isn’t loaded yet produces exactly one load, and everyone waits on that load rather than starting their own.

Keeping the launch command honest across updates

A slot’s systemd unit bakes its launch argv at load time — updating hal0 changes the code that would render a slot’s command, but not the unit file that already rendered it. Left alone, a slot that was running before an update keeps running the pre-update flags through systemctl restart, crash-restarts, and even reboots, until something forces a fresh render.

hal0 closes most of that gap automatically: after an update finishes (and during install.sh’s update flow — now the single user-facing entry point for both fresh installs and updates), it re-renders every existing slot’s unit file through current code and issues one daemon-reload. Crucially, it never bounces a running unit to do this — a slot that’s already serving keeps serving on its old argv; the fresh command only takes effect the next time that slot starts, whether that’s a manual restart, a crash-restart, or a reboot. A slot whose fresh render is byte-identical to what’s on disk is skipped as a no-op, and a per-slot render failure is logged and skipped rather than aborting the update.

That still leaves a window — a slot that hasn’t restarted since the update is running old argv and there’s no way to tell just by looking at it. The dashboard closes that window with a resolved-command drift indicator: each slot card compares the container’s actual, live podman inspect argv against a fresh render from current config across the flags that matter most (context size, model, alias, batch/ubatch size) and flags a mismatch. Seeing drift on a slot you haven’t touched is the cue that it’s still running an older command and could use a restart.

The GPU arbiter

The reference hardware has a single iGPU sharing one unified memory pool, so two GPU workloads can’t both hold their weights at once. The GPU arbiter makes that exclusivity explicit. It sorts GPU-backed container slots into two groups — an llm group (GPU chat/embedding slots) and an img group (the ComfyUI image-generation slot) — and only one group may hold the GPU’s memory at a time. NPU and CPU slots are never arbitrated; they don’t contend for the iGPU.

When the GPU is in image mode, the arbiter refuses to dispatch to an llm-group slot: that request gets a structured gpu.image_mode 503 (with a Retry-After) instead of silently failing. The image container itself stays resident — what’s exclusive is the GPU memory, not the container — so switching modes is fast. After the image slot has had no jobs for its configured idle window (idle_restore_minutes, 60 by default; 0 means manual-only), the arbiter frees the diffusion models and restores the LLM slots it had stopped. If the image slot still has an in-flight generation job when the idle window elapses, the restore defers rather than unloading it mid-render — a long video render simply pushes the LLM restore back until it finishes.

Caution

The single NPU LLM anchor is exclusive too, but for a different reason: the AMD XDNA hardware context admits exactly one NPU LLM at a time. hal0 enforces this — enabling a second device=npu chat slot is rejected.

Dedicated embed and rerank lanes

embed and rerank each get their own tuned profile and their own podman container — they are never combined on one llama-server instance. That’s a hard constraint, not a style choice: passing both --embedding and --reranking to the same llama-server yields all-zero scores. Reranking is provisioned as its own slot, internally named rerank, distinct from the embed slot it’s paired with in the capability catalogue.

Both lanes are tuned for how pooled scoring actually works: -ub 8192 matches their batch size because a pooled embedding or rerank pass has to run the whole input in one physical micro-batch — a smaller ubatch truncates or fails on longer inputs.

MTP: an Auto / On / Off decision, not a switch

Multi-token prediction (speculative decoding against the model’s own draft heads) is resolved from independent signals, in this order:

1. Model eligibility — does the model actually ship MTP heads? hal0 checks the registry’s mtp tag or an mtp marker in the model’s id/filename.
2. Slot override — the slot’s own mtp field is a tri-state: forced On, forced Off, or Auto (the default, shown as the middle position of the dashboard’s Auto/On/Off control in the slot drawer). MTP is a model capability, gated by the launching runner’s support for it — a profile’s mtp field is informational only and is never read by the launch path.

An explicit slot override always wins. Left on Auto, MTP only turns on when the model is actually eligible — so a plain chat model dropped onto a slot no longer launches with dead speculative-decoding flags.

Forcing On for a model that turns out to have no MTP heads is a launch crash waiting to happen (context type MTP requested but model doesn't contain MTP layers), so hal0 defuses that specific combination rather than letting it recur: swapping a forced-on slot onto an ineligible model clears the override back to Auto, and an update sweeps existing slot configs for the same stale combination.

Seeded slots, roles, and aliases

Every install starts with a set of seeded slots so the common capabilities have a home before you create anything:

utility, embed, rerank, stt, tts, img, vision, and agent.

When the NPU runtime (FLM) is present, two more shadow slots are seeded: stt-npu and embed-npu (riding the NPU chat anchor’s own npu slot). Seeded slots are reserved — you can’t create a conflicting name or delete them.

The two canonical LLM roles are agent (the capable default — the dispatch fallback anchor every routing chain ends in) and utility (the cheap helper, seeded on every install so tasks like memory extraction always have a cheap local model to target).

Each slot carries a type (llm, embedding, reranking, transcription, tts, or image) and a device preference (gpu-rocm, gpu-vulkan, gpu-cuda, cpu, or npu — gpu-cuda is the experimental path for non-Strix-Halo NVIDIA hosts). hal0 keeps back-compat aliases so older callers keep working: agent-hermes resolves to agent, and embed-rerank (the rerank capability slot’s briefly-used old name) resolves to rerank. Aliases are never written to disk and never appear in slot listings — they’re a transparent translation at dispatch time.

Addressing a slot by its name (e.g. model: "agent") is the stable way to pin a co-resident model: the name doesn’t change when you swap the underlying model file. hal0 also advertises three virtual model names that resolve to whichever slot is actually loaded — hal0/agent, hal0/utility, and hal0/npu — and generalizes the pattern to any enabled type: llm slot: a custom slot named research is addressable as hal0/research even though it isn’t one of the three advertised names.

The NPU trio

The AMD XDNA NPU is driven by FastFlowLM (FLM), and one detail shapes how hal0 uses it: a single flm serve process serves three modalities at once — chat, speech-to-text, and embeddings. hal0 calls this the NPU trio. See Strix Halo for the hardware reason this exists.

Stacks — declarative slot bundles

A stack is a preconfigured slot + profile + model bundle you can apply atomically. See Stacks for the full model — the TOML shape, apply semantics, and an honest maturity read.
